FAA Type: L: L-810 Steady Burn Obstruction Light
ICAO Type: Low Intensity Type B Obstacle Light

ETL Certified: FAA AC 150 45-43F

Compliant to: ICAO Annex 14, CAR 621.19, MIL-C-7989

Application:

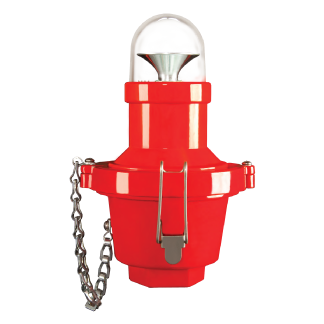

The Hughey & Phillips L-810 Obstruction Light provides an LED based solution to the FAA L-810 style of steady burning lights. The L-810 LED is currently available in both single and double configurations operating at 120V, 240V, 277VAC and also in a range of 9-48 VDC. Both configurations are available as original equipment or as a direct replacement to the existing socket/lamp/lens on H&P L-810 Incandescent OB2x Series obstruction lights.

Features:
LED based obstruction lights last over 15 times longer than an incandescent light
Approximately 94% less power than 116 Watt standard incandescent lamp
4 Watt Power Consumption (AC version) / 3.4 Watts (DC Version)
Available in both side and bottom conduit hubs at ¾” and 1” NPT
Weather resistant lamp assembly & housing
Self contained wiring compartment on double units eliminates additional boxes
Operates as a steady burn or flashing light
Resistant to shock and vibration
Direct replacement for existing incandescent fixtures
5 Year Warranty

Photometric Specifications:
Beam Spread: 360° Horizontal, 3° Minimum Vertical
Effective Intensity: ≥ 32 Candela

Mechanical Specifications
Base Material: Cast Aluminum with aviation red powder coat
Lens: Heat resistant clear glass
Single: 8” x 5.5” x 5.5” (H x W x L), 2 lbs.
Double: 8” x 5.5” x 11.5” (H x W x L), 6 lbs.

Environmental Specifications:
Temperature: ±55°C
Humidity: 95% relative humidity

Ordering Matrix
