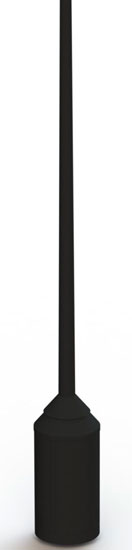

Decorative Poles and Solutions

Our Decorative Poles product line is designed to place even the most evasive telecommunication equipment in an aesthetically challenging area. These poles are highly configurable, blend into the existing environments, and are designed to fit the needs of the community.

Design Features:

• Highly configurable
• Sleek, streamline design
• Galvanized steel, or T356 Aluminum
• Powered coat finish, or Galvanized finish, color set by customer specification
• Styled to match existing fixtures
• Interfaces with multiple Sabre Products for radios and antennas
• Can hold can-style antennas or panel antennas
• Designed specific to their equipment to allow for a clean appearance
• Inquire for pricing based upon need and design

Outdoor Enclosures

[180E077_000 | Single Bay Outdoor Cabinet]

Design Features:

• Telecordia GR-487 + ZONE 4 Seismic
• UL 60950 (pending)
• Solar shield
• Direct air cooling
• Supports 5 strings Ni-Cd batteries, 48V
• Andersen disconnects at each string
• Removable panel in rear
• 3-Point latching with pad lockable handle in front
• Two (2) 2x14 position bus bars
• Door intrusion alarms
• Foam insulation
• Knockouts located per customer requirements

Product Specifications:

• Product Dimensions: 32” X 32” X 72”
• 0.125” 5000 Series aluminum welded construction
• 10 Gauge, reinforced steel battery racks
• Pad mount enclosure
• C-channel mounting base for easy installation
• Outdoor-grade polyester powder coat finish, per customer specification

Telecomm Bench

[180E065_000 | Concrete Telecommunications Equipment Bench]

A part of our outdoor and indoor shroud and enclosure family, the Telecomm Bench provides a source for storing small telecommunications equipment in a public space while maintaining a sleek and stealth profile. The Bench also provides public functionality any field site environment.

Design Features:

• Front and rear access door
• NEMA 3R rated
• Lockable door latches
• Integrated cable management system
• Concrete structure with internal metal structure
• Stainless steel material
• 20” x 13” door clearance
• 26” Wide metal frame

Product Specifications:

• Product Dimensions:
  • 60”W x 31”D x 35”H (28”D x 55”W at base)
• o 44” Seat Width
• 19” Rack Rails
• 6 RU rack capacity
• Fan cooling, blows from rear
• (2) 2 gang electrical box ports

List Pricing: Starting at $8,575.00

Outdoor Enclosures

[180E076_000 | Single Bay Outdoor Cabinet]

Design Features:

• Telecordia GR-487 + ZONE 4 Seismic
• UL 60950 (pending)
• Solar shield
• Dantherm 4K BTU AC Unit
• 500 Watt heater
• 2 door access (front and rear)
• 3-Point latching with pad lockable handle in front
• NEMA 4 or NEMA 3R capable (equipment dependent)
• 12 position load center
• Door intrusion alarms
• Foam insulation
• Knockouts located per customer requirements

Product Specifications:

• Product Dimensions: 32” X 32” X 72”
• 0.125” 5000 Series aluminum welded construction
• 39 RU (2) rack capacity, 23” fixed rail
• Pad mount enclosure
• C-channel mounting base for easy installation
• Outdoor-grade polyester powder coat finish, per customer specification
